What is the structure of Radiator Fan?
Ever wonder what makes up that spinning device keeping your engine cool? The structure matters. So, what exactly is inside a radiator fan?

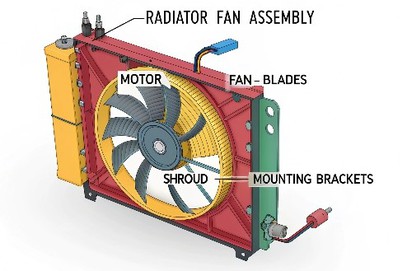

A radiator fan consists of a motor, fan blades, a shroud, and mounting brackets. The motor powers the fan blades, which move air through the radiator. The shroud directs this airflow, while brackets secure the assembly to the radiator.
Let's break down each component to understand how they work together to keep your engine cool.
The Role Of Radiator Fans In Engine Cooling
Why do cars need radiator fans? Temperature control is vital for engines. So, what role do these fans play?
Radiator fans pull air through the radiator to remove heat from the coolant. This process is critical when your car is idling or moving slowly. Without it, your engine would overheat quickly in stop-and-go traffic.
The radiator fan plays a crucial role in the overall cooling system of your vehicle. When your car is moving at higher speeds, the natural airflow through the radiator is usually sufficient to cool the engine. However, when you're stuck in traffic or idling, there's not enough air movement to cool the radiator effectively. This is where the radiator fan comes in.
The fan creates artificial airflow through the radiator, helping to dissipate heat from the coolant. This cooled coolant then circulates back to the engine, absorbing heat and maintaining optimal operating temperature.Modern vehicles often use electric fans controlled by the engine's computer or a temperature switch. These fans only operate when needed, which improves fuel efficiency. Older vehicles typically used mechanical fans driven directly by the engine, which run whenever the engine is running.
The cooling system 1 works in a continuous cycle: hot coolant from the engine flows into the radiator, the fan pulls air across the radiator fins cooling the coolant, and the cooled coolant returns to the engine to absorb more heat.
Here's a table showing how the radiator fan functions in different driving conditions:
[1]Exploring the cooling system's workings can help you troubleshoot issues and ensure your vehicle runs efficiently.
| Driving Condition | Natural Airflow | Fan Operation | Cooling Efficiency |
|---|---|---|---|
| Highway Speeds | High | Minimal/Off | High |
| City Driving | Moderate | Intermittent | Moderate |
| Idling/Stopped | None | Continuous | Dependent on fan |
| Heavy Load/Towing | Varies | Increased | Moderate to High |
Can a bad radiator fan cause coolant loss?
Fan not working right? Noticing coolant missing? So, is there a connection between fan problems and coolant loss?
A bad radiator fan itself doesn't directly cause coolant loss. However, it can lead to engine overheating, which may cause coolant to expand and overflow or create pressure that exposes existing leaks in the cooling system.
When a radiator fan fails, it doesn't create holes or damage that would directly cause coolant to leak. However, the relationship between a malfunctioning fan and coolant loss 1 is important to understand.The primary issue is temperature control. When a radiator fan stops working properly, the engine temperature can rise significantly. As coolant heats up, it expands. Most cooling systems have an overflow reservoir to accommodate this expansion, but excessive heat can cause the coolant to expand beyond the system's capacity.
Under extreme pressure from overheating, weak points in the cooling system may fail. This includes:
Radiator seams
Hose connections
Gaskets
The radiator cap seal
Additionally, repeated overheating cycles 2 can accelerate wear on these components, eventually leading to leaks even after the temperature has returned to normal levels.Extreme overheating can even cause the engine block or cylinder head to warp or crack. These serious problems definitely lead to coolant loss and are extremely expensive to repair.
Here's a breakdown of how fan failure can indirectly lead to coolant loss:
[1]Exploring the causes of coolant loss can help you identify potential issues early and maintain your vehicle's health.
[2]Learning about the effects of overheating cycles can help you take proactive measures to protect your engine from damage.
| Stage | What Happens | Result |
|---|---|---|
| 1. Fan Failure | Reduced airflow through radiator | Engine temperature rises |
| 2. Overheating | Coolant expands beyond normal limits | Pressure increases in system |
| 3. Pressure Build-up | Stress on weak points in cooling system | Existing small leaks worsen |
| 4. Component Failure | Hoses, gaskets, or radiator may fail | Direct coolant leakage |
| 5. Extended Damage | Potential warping of metal components | Major coolant loss and engine damage |
Will my coolant sensor make my radiator fan not turn on?
Fan not spinning? Could the sensor be the culprit? So, can a coolant sensor prevent the fan from working?
Yes, a faulty coolant temperature sensor can prevent your radiator fan from turning on. This sensor tells the car's computer when the engine is hot enough to need cooling. If it's not working right, the fan won't activate.
The coolant temperature sensor is a critical component in your car's cooling system. It continuously monitors the temperature of the engine coolant and sends this information to the engine control unit (ECU) or directly to the fan relay in some older vehicles.
When the sensor detects that the coolant has reached a predetermined temperature (usually between 195-220°F or 90-105°C), it signals that the radiator fan should turn on to increase airflow through the radiator and cool the engine.
If the coolant temperature sensor fails, it can malfunction in two primary ways:
False Low Reading: The sensor may incorrectly report that the coolant temperature is lower than it actually is. In this case, even though the engine is overheating, the ECU never receives the signal to turn on the fan.
Complete Failure: The sensor may stop working entirely, providing no temperature information to the ECU. Without this input, the system defaults to a "safe" condition, which often means the fan doesn't activate.
In modern vehicles with sophisticated engine management systems, the ECU might detect an implausible reading from the sensor and trigger a check engine light or enter a "limp home" mode where the fan runs continuously as a precaution.
Testing the coolant temperature 1 sensor is relatively straightforward with a multimeter. The sensor's electrical resistance should change predictably with temperature changes.
Here's a troubleshooting guide for fan issues related to the coolant sensor:
[1]Understanding the coolant temperature sensor is essential for maintaining your vehicle's cooling system effectively.
| Symptom | Possible Sensor Issue | Verification Step | Solution |
|---|---|---|---|
| Fan never turns on | Sensor reading falsely low | Check sensor resistance with multimeter | Replace sensor |
| Fan runs constantly | Sensor reading falsely high | Compare actual coolant temp with gauge reading | Replace sensor |
| Intermittent fan operation | Sensor has intermittent connection | Inspect wiring and connections | Repair or replace wiring/sensor |
| Fan doesn't work but temperature gauge does | Sensor may be fine; other fan circuit issue | Test fan by direct power connection | Check relay, fuse, and fan motor |
| Neither fan nor gauge works | Main sensor circuit issue | Check for power at sensor connector | Repair wiring or replace sensor |
Conclusion
Understanding your radiator fan is important. Its structure, role in cooling, impact on coolant, and relationship with sensors all matter. Proper maintenance prevents overheating issues.
